3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine

3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine

  • 3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine
  • 3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine
  • 3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine
  • 3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine
3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine
Product Details:
Place of Origin: China
Brand Name: TRUSTAR
Certification: CE ISO9001
Model Number: TMB-200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+17500-21500+set
Packaging Details: Export sea wooden packaging
Delivery Time: 20-30days
Payment Terms: D/P, T/T
Supply Ability: 40+Set+30days
Contact Now
Detailed Product Description
Product Name: Cellophane Over Warapping Machinery Keyword: Cellophane Overwrapping Machine
Condition: New Hot 2021 Function: Three Dimensional And Wrapping
Driver Type: Eleactric. Pneumatic Name: 3D Box Play Card Automatic Shrink

  • Usage:

This machine is widely used in paper, cosmetics, medicines, food, health supplies, audio-visual products, stationery, daily necessities, and other outside the box of transparent film three dimensional packaging (packaging effect is the same as cigarette box).Such as bulk poker, biscuits, Caramel Treats, post, pad of paper, wafer.

Medicines, health care products, nutritional supplements, food, daily cosmetics, stationery, VCD tapes, poker, cigarettes



  • Feature:

1) No need to regulate the height of two work tops of the machine when the mould need to be replaced, no need to assemble or dismantle the material discharge chains and discharge hopper. Reduce the replacement time of the mould four hours to the present 30 minutes.

2) New-type double safeguard mechanisms are used, hence other spare parts will not be damaged when the machine runs out of step without stop of the machine.

3) Original unilateral hand swing device to prevent the machine shaking adversely, and the non-rotation of the hand wheel during the running of the machine can secure the security of the operator.

4) New-type double-rotary film cutter can ensure no need to mill the blade during many-year use of the machine, which overcomes the defect that the traditional stationary single-rotary film cutting cutter was easily worn.



  • Technical:



Machine Model TMB-200
Packaging Speed 30-75box/min
Packaging Size(L*W*H) (50-180)*(20-100)-(10-50)mm
Packaging Material BOP/ PVC/Smoking film
Thickness 0.021-0.028mm
Sealing Temperature 100-150ºC
Working Pressure >0.3Mpa
Total Power 4.8kw
Dimension(L*W*H) 2000*750*1550MM
Diameter of Bore Ø75mm
Packing Width By cusotmer packing size
Integrated Noise <75dB(A)
Weight 750kg

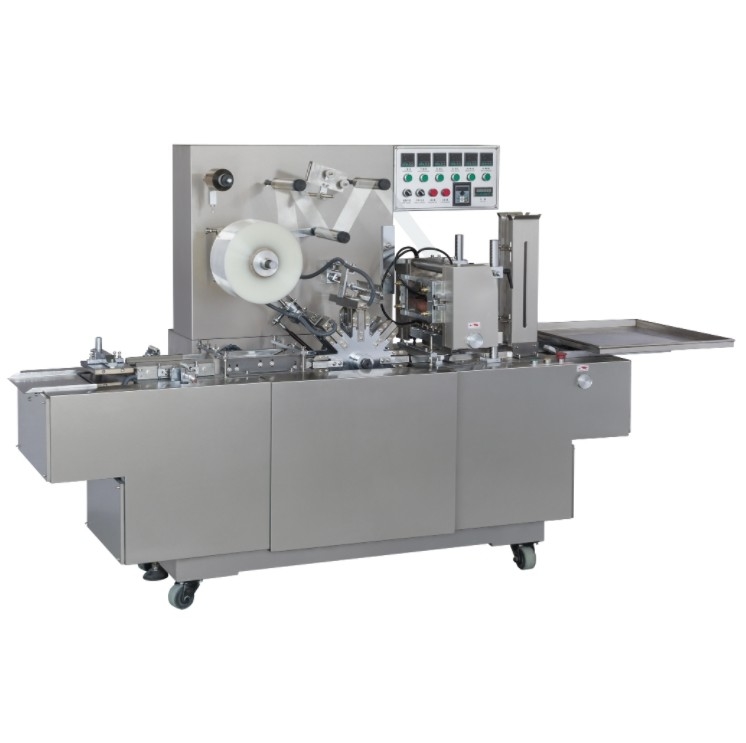

  • Picture of machine:



3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine 0





3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine 1



3D Box Play Card Automatic Shrink Cellophane Overwrapping Machine 2
